iconos® Fire trestle logistics platform

Effortless transportation of extinguishing equipment

The iconos® Fire trestle with loading platform transports up to 500 kg of extinguishing equipment effortlessly over difficult terrain. Thanks to its powerful electric motor and wide caterpillar tracks, it masters obstacles at speeds of up to 20 km/h and enables fast and energy-saving transportation directly from the truck to the scene of the fire.

iconos®

Fire trestle logistics platform

Fast and safe transportation of firefighting equipment in the field

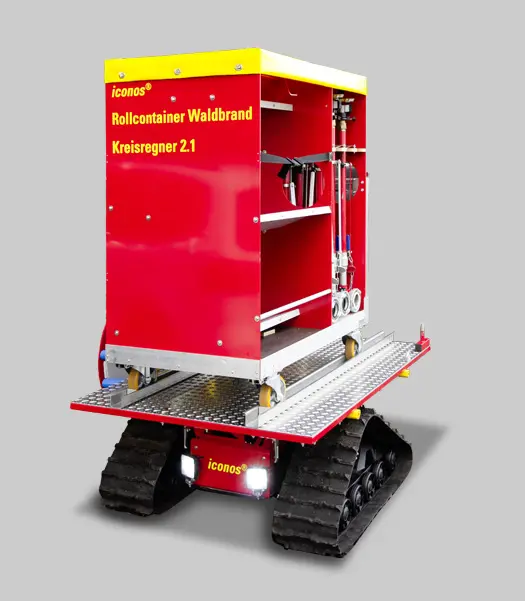

With the loading platform on the iconos® Fire trestle chassis, an emergency crew can effortlessly transport up to 500 kg of extinguishing equipment and supplies to the scene. The chassis moves under the platform, which is held by the heel supports, and is then lowered and firmly connected with four robust clamps. This allows prepared roll boxes to be loaded directly from the truck onto the fire stand. The system of interchangeable loading platforms was specially developed for energy-saving transportation. The powerful electric motor with 1,000 Nm torque and the wide caterpillar tracks enable the fire trestle to overcome hollows and obstacles in four speed levels from walking speed to 20 km/h, ideal for use in rough terrain.

✓ iconos® fire trestle logistics platform with 4 heel supports

✓ High load
✓ Power-saving transportation of extinguishing equipment
✓ Easily and quickly connected to the chassis
✓ One chassis – different platforms for different tasks
✓ Versatile in use – depending on the task at hand

• Rated power: 2 x 7.5 kW
• Torque: 1,000 Nm
• Heavy-duty chassis with 30 mm tread depth
• Top speed 20 km/h, switchable in 4 stages from walking speed
• Lithium-ion battery 8.8 KWh
• Battery operating time: 40 km or 8 hours
• Radio remote control 300 m range, 2 radio channels
• Weight with body frame, platform: 640 kg
• Basic dimensions: 1,600 mm x 1250 mm x 650 mm (L x W x H)
• Payload: 500 kg
