iconos® Fighting Robot 2L
The remote-controlled crawler vehicle for fire fighting
The iconos® Fighting Robot 2L is controlled via a radio remote control with a range of up to 300 metres. The radio remote control has two main functions, such as controlling the travel drive and operating the extinguishing devices. Further options are possible. With its wide tracks and powerful electric drive, it overcomes obstacles and reaches a speed of up to 20 km/h.
The Fighting Robot 2L is combined with the
Extinguishing Platform or Logistics Platform
iconos®

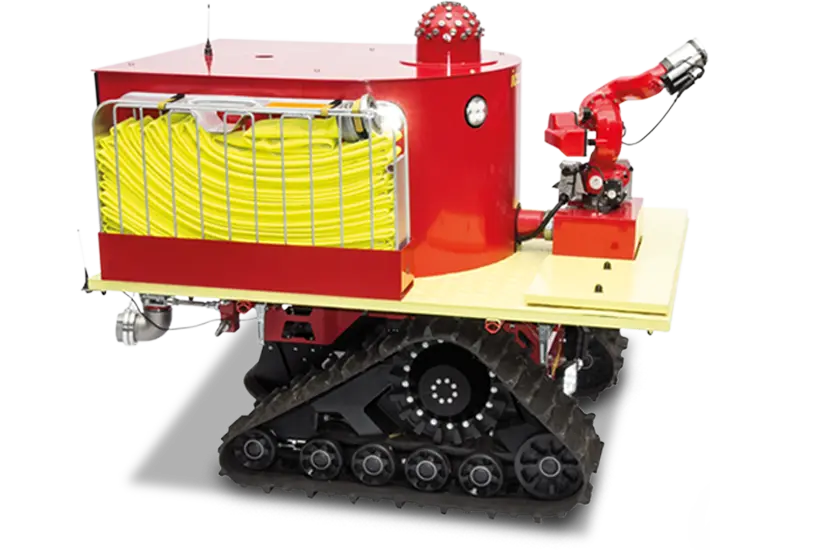

Fighting Robot 2L – Extinguishing Platform
Remote-controlled firefighting technology: ideal for fighting fires in difficult terrain

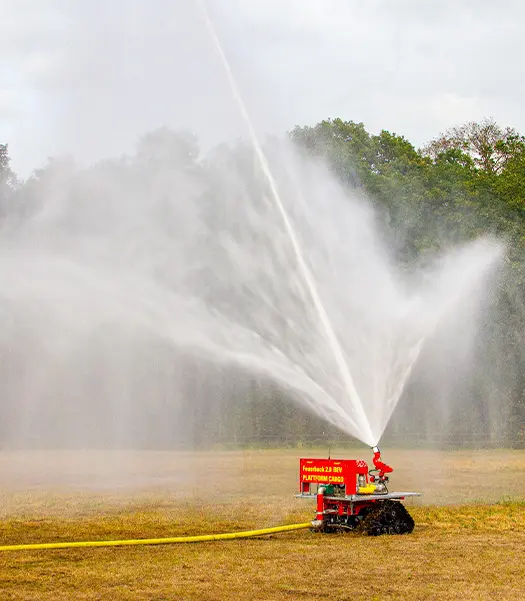

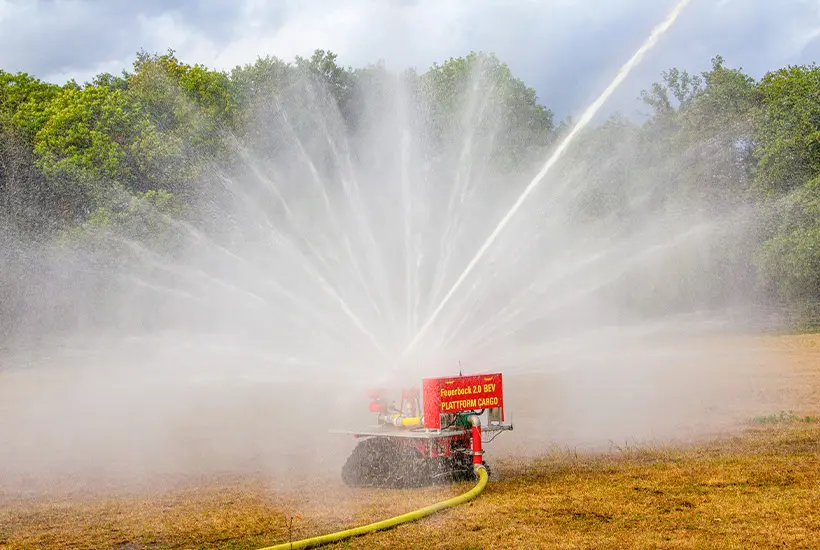

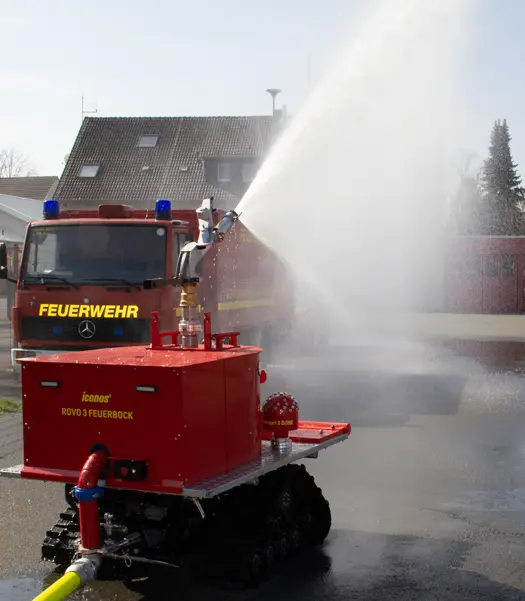

The firefighting platform is equipped with a permanently mounted water monitor and a second B-connection for additional firefighting equipment. Both functions are switched separately via a 2-way solenoid valve. Water is supplied via a centrally mounted B-connection on the iconos® fire truck, which ensures good traction when pulling the B-hose. The pulling force is distributed in the center of the vehicle and is transferred symmetrically and evenly to the tracks. In the event of a forest fire, for example, the water monitor reaches the tree canopy, while a fireball (second connection) extinguishes the lower areas and protects the equipment.

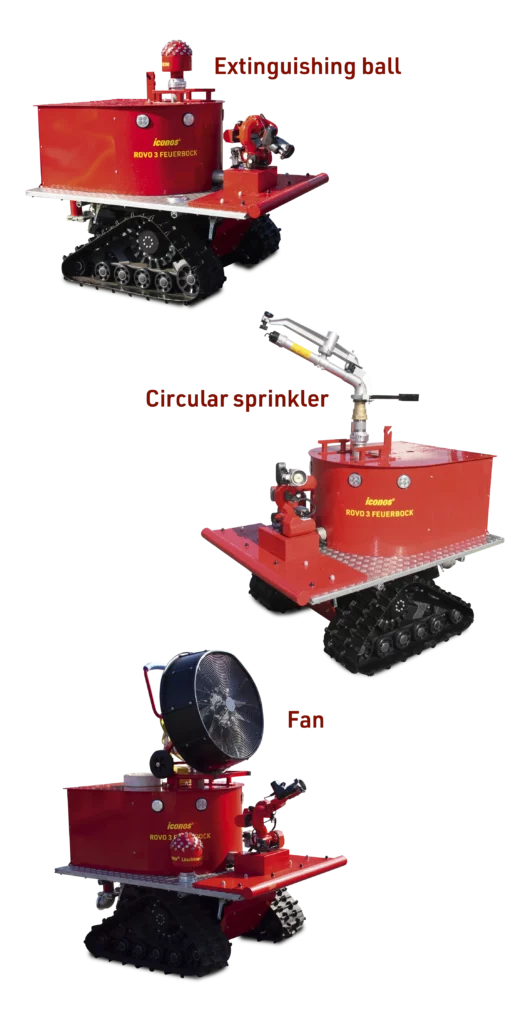

3 possible firefighting devices:
• Fireball
• Circular sprinkler
• Fan
✓ iconos® Fighting Robot 2L
+ iconos® Extinguishing Platform
✓ Large extinguishing capacity
✓ Works independently of personnel at the danger zone
✓ Quick and easy to install
✓ Avoidance of fire shadows due to rain effect when using the extinguishing ball
✓ Versatile in use – depending on the task at hand
✓ Compatible with 3 sprinkler heads: extinguishing ball / circular sprinkler / fan
✓ Each interchangeable platform is supplied with 4 heel supports
• Rated power: 2 x 7.5 KW
• Torque: 1000 Nm
• Heavy-duty chassis with 30 mm tread depth
• Top speed 20 km/h, switchable in 4 stages from walking speed
• Lithium-ion battery 8.8 KWh
• Battery operating time: 40 km or 8 hours
• Radio remote control 300 m range, 2 radio channels
• Monitor with spray or full jet can be controlled via radio remote control
• Water consumption 2,000 l/min, maximum throw range 60 m (depending on pressure)
• Weight with mounting frame, platform: 640 kg
• Basic dimensions: 1,600 mm x 1,250 mm x 650 mm (L x W x H)
• Payload: 500 kg
iconos®

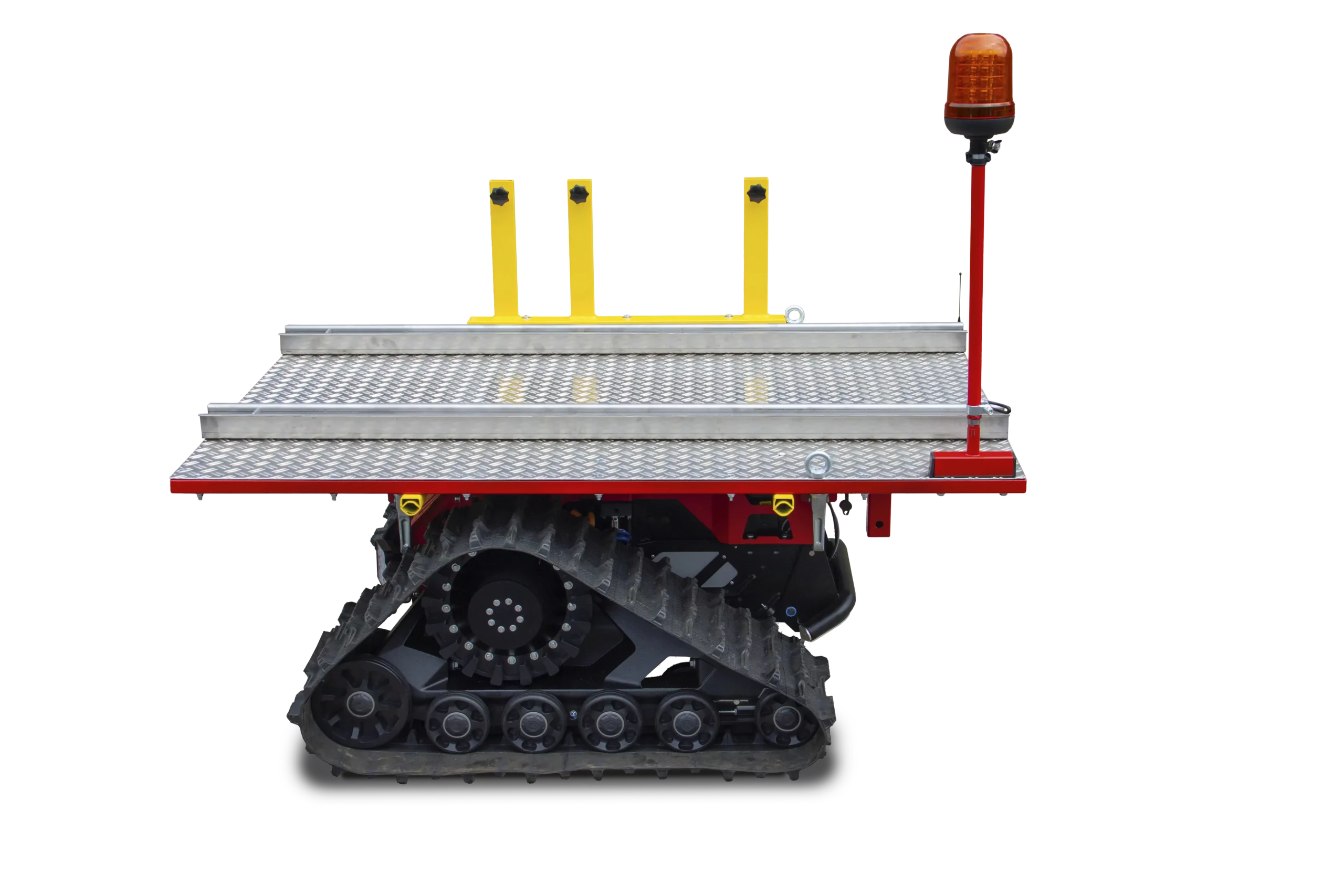

Fighting Robot 2L – Logistics Platform
Remote-controlled tracked vehicle for the effortless transport of firefighting equipment

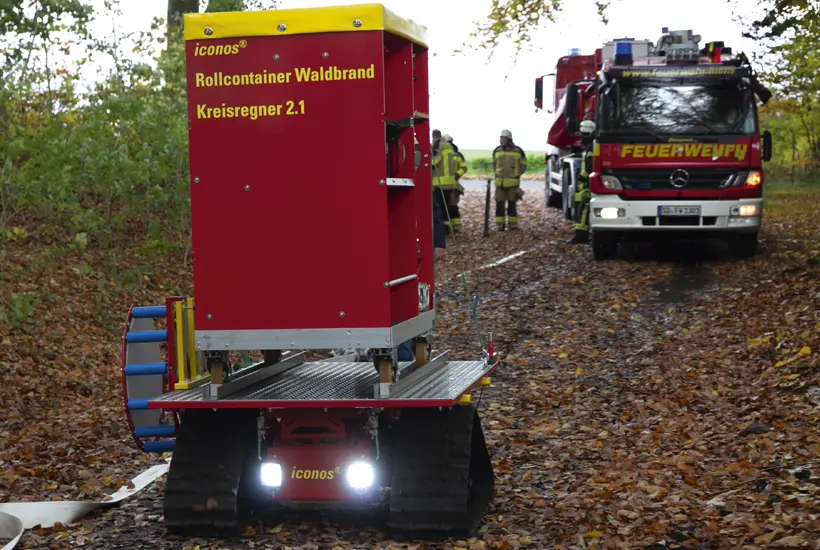

With the loading platform on the iconos® Fighting Robot chassis, a firefighter can effortlessly transport up to 500 kg of firefighting equipment and supplies to the scene of the emergency. The powerful electric motor with 1,000 Nm of torque and the wide tracks enable the Feuerbock to navigate dips in the ground and obstacles at four speed settings ranging from walking speed to 20 km/h, making it ideal for use in rough terrain.
✓ iconos® Fighting Robot 2L
+ iconos® Logistics Platform
✓ Effortless transport of fire extinguishers over rough terrain
✓ Quick and easy to install
✓ Each interchangeable platform is supplied with 4 heel supports
• Rated power: 2 x 7.5 KW
• Torque: 1000 Nm
• Heavy-duty chassis with 30 mm tread depth
• Top speed 20 km/h, switchable in 4 stages from walking speed
• Lithium-ion battery 8.8 KWh
• Battery operating time: 40 km or 8 hours
• Radio remote control 300 m range, 2 radio channels
• Weight with mounting frame, platform: 640 kg
• Basic dimensions: 1,600 mm x 1,250 mm x 650 mm (L x W x H)
• Payload: 500 kg
