iconos® Hand tube with support
Effortless operation of iconos® Fire fighting ball 360° Speed

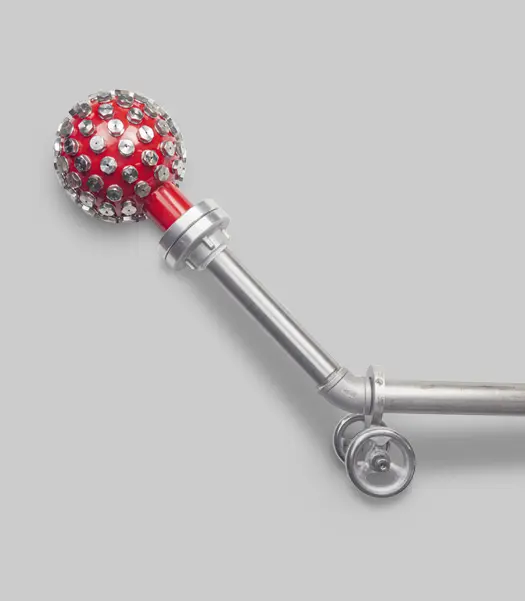

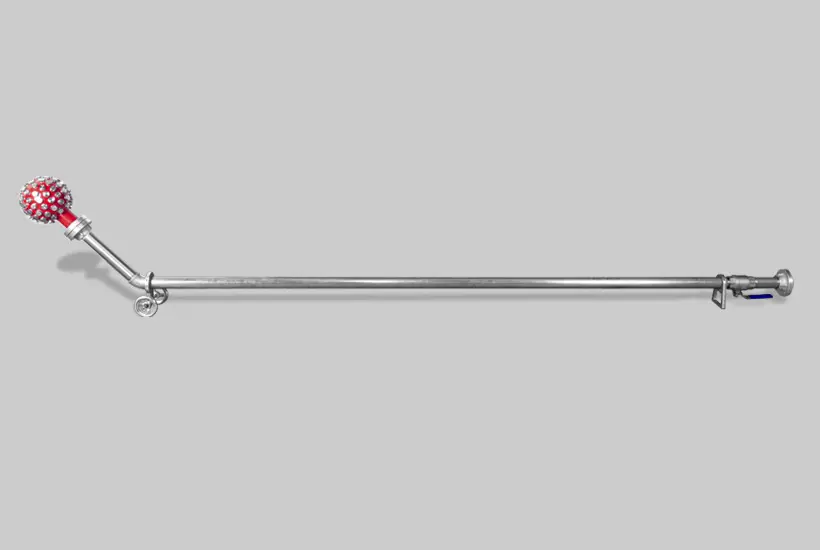

The iconos® Hand tube with support for the iconos® Fire fighting ball 360° Speed has a total length of 2800 mm and a 45° offset connection head, which ensures that the extinguishing sphere is positioned safely in the vehicle interior. An integrated chassis enables the extinguishing sphere to be moved under obstacles to reach hard-to-access areas such as truck underbodies, basements, room fires or underground garages.
iconos®
Hand tube with support
iconos® Fire fighting ball 360° Speed effortless operation
The iconos® Hand tube with support for the iconos® Fire fighting ball 360° Speed has a total length of 2800 mm and is equipped with a 45° cranked connection head. This specially developed connection head ensures safe and stable positioning of the extinguishing ball in the vehicle interior, prevents unintentional rotation and ensures reliable positioning. An integrated small chassis on the offset transition enables the extinguishing ball to be moved under obstacles. This makes it easy to reach hard-to-access areas such as truck underbodies, basements, room fires or underground garages.
✓ iconos® Hand tube with support
iconos® Fire fighting ball 360° Speed not included in delivery, optional at extra charge.
✓ Areas of application: Truck substructures, cellar rooms, underground garages
✓ Safe placement in the vehicle interior
✓ Efficient extinguishing in interior spaces
✓ Effective use in inaccessible areas
✓ No danger to the emergency services
✓ Ideal for fires in confined or enclosed areas
• Length: 2800 mm
• Connection head: 45° cranked
• Material: stainless steel, aluminum
• Weight: 4.3 kg
• Function: Chassis for movement under obstacles
iconos®
Parapet plate
Using the window sill to effectively extinguish vehicle fires
The iconos® stainless steel parapet plate can be slipped over the cranked pipe section in a few simple steps and within a few seconds and securely fastened with two tommy screws.
This allows the iconos® Fire fighting ball 360° Speed to be used over the window sill for truck and bus fires so that the sphere protrudes into the interior of the cabin or vehicle interior. This allows targeted and massive extinguishing in places where access with a jet pipe or other extinguishing equipment is particularly difficult.
✓ iconos® Parapet plate
• Length: 300 mm
• Clear dimension: 200 mm
• Height: 220 mm
• Weight: 3.8 kg
• Material: Stainless steel (Parapet plate and tube holder)
Our products
Discover the entire iconos® product range for effective fire protection.
Rely on the powerful iconos® extinguishing systems for reliable and effective fire protection in all situations.
iconos® transport systems ensure fast and safe transportation of your extinguishing equipment, whatever the application.
iconos® accessory products offer useful and high-quality insert, extension and replacement material.
