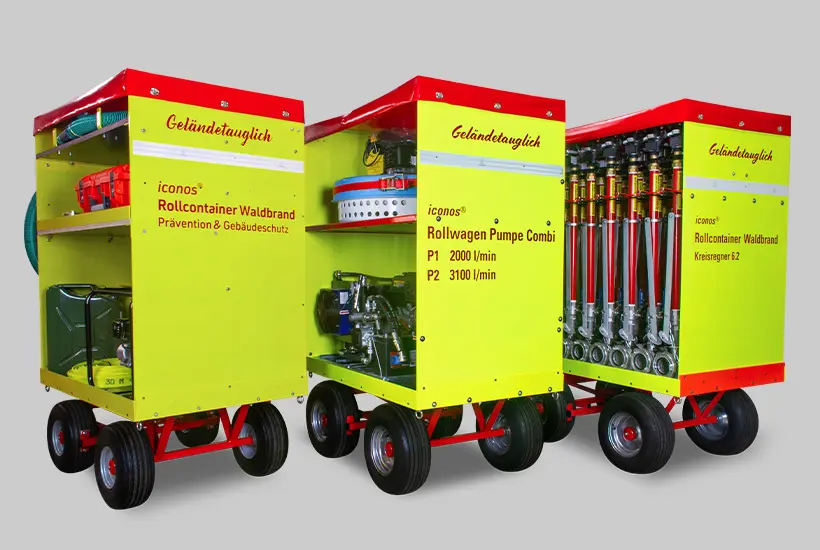

iconos® Trolley

Firefighting and transport systems for firefighting equipment

One of the biggest challenges, particularly in the case of forest fires, is transporting the required material quickly and efficiently to the scene of the fire in open terrain. Our roll containers with wide pneumatic tires are the ideal solution for this, especially on unpaved surfaces.

All trolley are available with standard or off-road tires.

Product overview
iconos® Trolley nozzle hose
Go to product
iconos® Trolley forest fire B - hose 620m
Go to product
iconos® Trolley forest fire circular sprinkler 6.2
Go to product
iconos® Trolley forest fire circular sprinkler 2.1
Go to product
iconos® Trolley forest fire circular sprinkler 2.1 + D
Go to product
iconos® Trolley forest fire circle sprinkler 2.3
Go to product
iconos® Trolley forest fire prevention & building protection
Go to product

iconos®

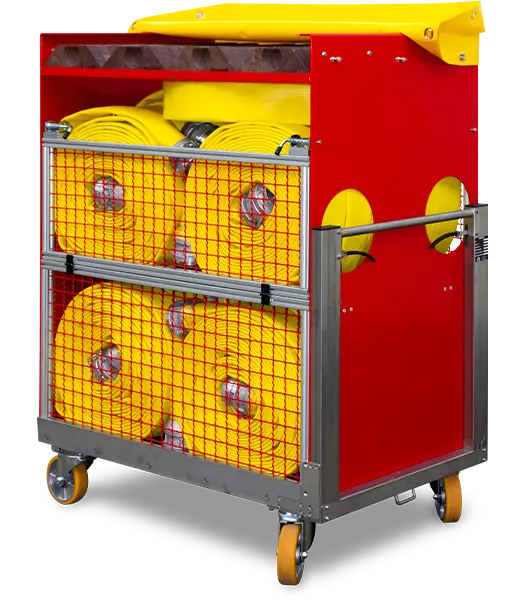

Trolley nozzle hose

The hoses can be easily removed. There is a tray with fixing blocks above the upper level. A removable cover protects the trolley and contents from dirt.

Available with standard or off-road tires

✓ Trolley
✓ 25 nozzle hoses on 2 levels
✓ Hose holders

• Platform dimensions: 1200 x 800 mm
• Overall length with drawbar: 1540 mm
• Overall height: 1800 mm
• Loading height: 530 mm
• Load capacity: 1100 kg
• Turntable steering
• With handles for 2 persons and towing eye
• Dead man’s brake according to EN 1757-3 for industrial trucks
• 4 lashing eyes or crane eyes
• 2 reflector strips at the front and rear
• Red tarpaulin cover made from tarpaulin fabric

iconos®

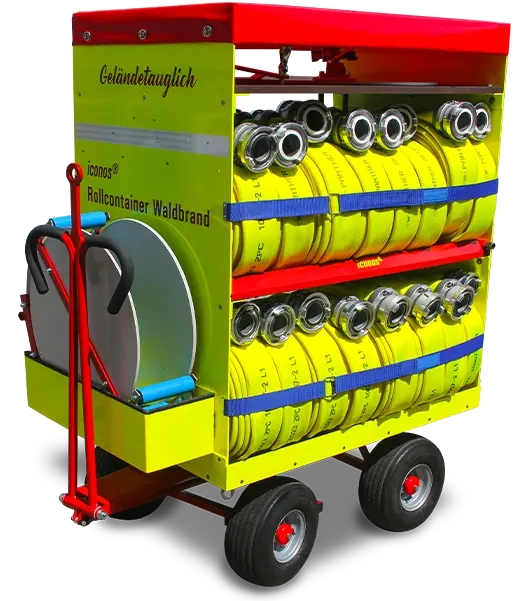

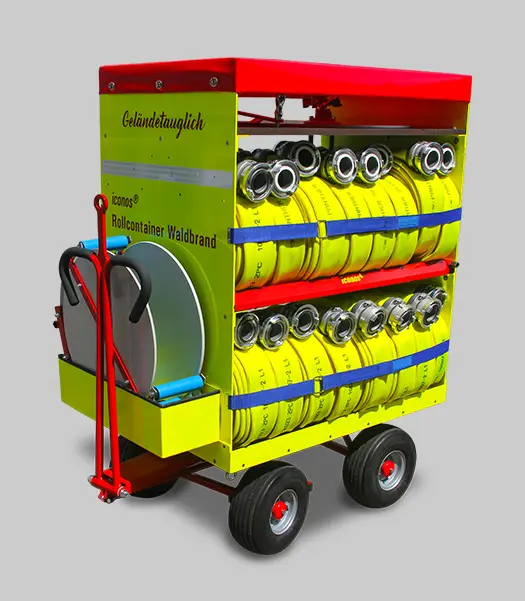

Trolley forest fire B - hose 620m

This roll container has an attachable unwinding device via which the roll hoses are unwound and laid during movement. A circular sprinkler is coupled between the ends of each hose. The rewinding device is used to rewind the laid hoses after use and simultaneously dewater them.

Available with standard or off-road tires

✓ Trolley
✓ 32 B rolling hoses 620 m
✓ Unwinding and rewinding device

• Platform dimensions: 1200 x 800 mm
• Overall length with drawbar: 1540 mm
• Overall height: 1800 mm
• Loading height: 530 mm
• Load capacity: 1100 kg
• Turntable steering
• With handles for 2 persons and towing eye
• Dead man’s brake according to EN 1757-3 for industrial trucks
• 4 lashing eyes or crane eyes
• 2 reflector strips at the front and rear
• Red tarpaulin cover made from tarpaulin fabric

iconos®

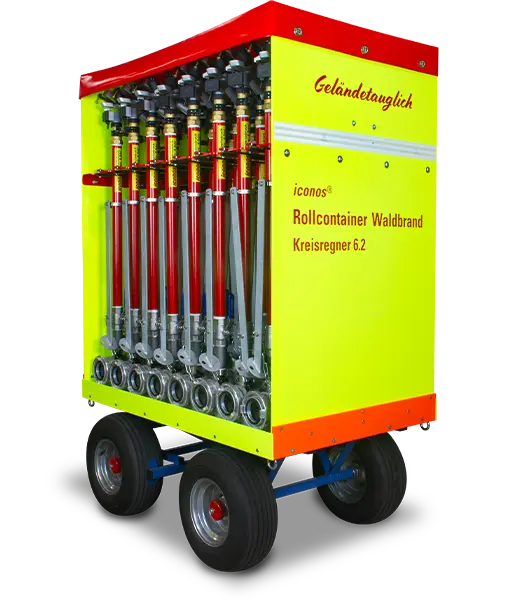

Trolley forest fire circular sprinkler 6.2

This unit can be used to extinguish or sprinkle an area of 6.6 ha.

Available with standard or off-road tires

✓ Trolley
✓ 32 circular sprinklers-B without hose material

• Platform dimensions: 1200 x 800 mm
• Overall length with drawbar: 1540 mm
• Overall height: 1800 mm
• Loading height: 530 mm
• Load capacity: 1100 kg
• Turntable steering
• With handles for 2 persons and towing eye
• Dead man’s brake according to EN 1757-3 for industrial trucks
• 4 lashing eyes or crane eyes
• 2 reflector strips at the front and rear
• Red tarpaulin cover made from tarpaulin fabric

iconos®

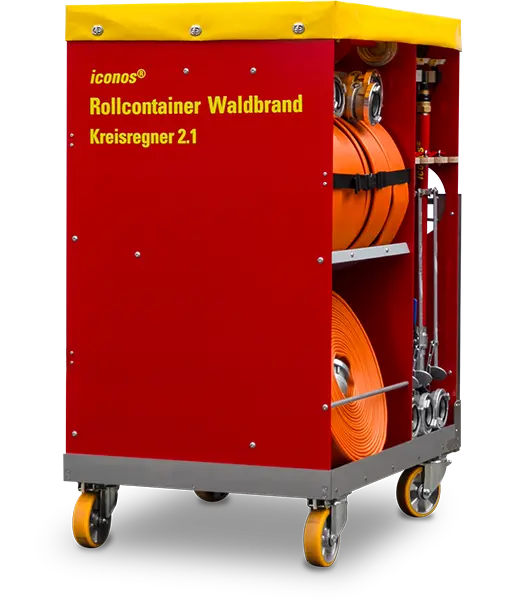

Trolley forest fire circular sprinkler 2.1

This unit can be used to extinguish or keep wet an area of 2.2 ha.

Available with standard or off-road tires

✓ Trolley
✓ 12 circular sprinklers B
✓ 12 B hoses made from extremely flame-retardant material
✓ Two end supports for the last circular sprinkler in the row
✓ Replacement nozzles

• Platform dimensions: 1200 x 800 mm
• Overall length with drawbar: 1540 mm
• Overall height: 1800 mm
• Loading height: 530 mm
• Load capacity: 1100 kg
• Turntable steering
• With handles for 2 persons and towing eye
• Dead man’s brake according to EN 1757-3 for industrial trucks
• 4 lashing eyes or crane eyes
• 2 reflector strips at the front and rear
• Red tarpaulin cover made from tarpaulin fabric

iconos®

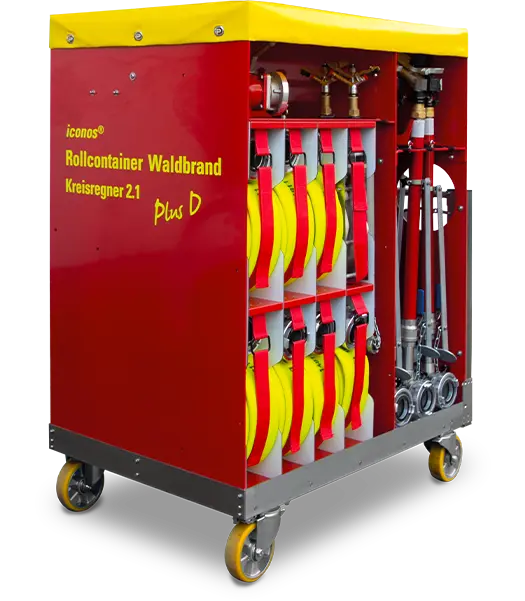

Trolley forest fire circular sprinkler 2.1 + D

This roll container has 16 hose compartments for B-roll hoses. In 2 compartments, 2 cassettes are equipped with 40 m of D hose each. This compact and powerful unit can be used to fight and extinguish approx. 23,000 m² of vegetation fires.

Available with standard or off-road tires

✓ Trolley
✓ 12 circular sprinklers-B
✓ 4 circular sprinklers-D
✓ B – D branch and ball valve for installation for a branch from the B line with D circular sprinklers

• Platform dimensions: 1200 x 800 mm
• Overall length with drawbar: 1540 mm
• Overall height: 1800 mm
• Loading height: 530 mm
• Load capacity: 1100 kg
• Turntable steering
• With handles for 2 persons and towing eye
• Dead man’s brake according to EN 1757-3 for industrial trucks
• 4 lashing eyes or crane eyes
• 2 reflector strips at the front and rear
• Red tarpaulin cover made from tarpaulin fabric

iconos®

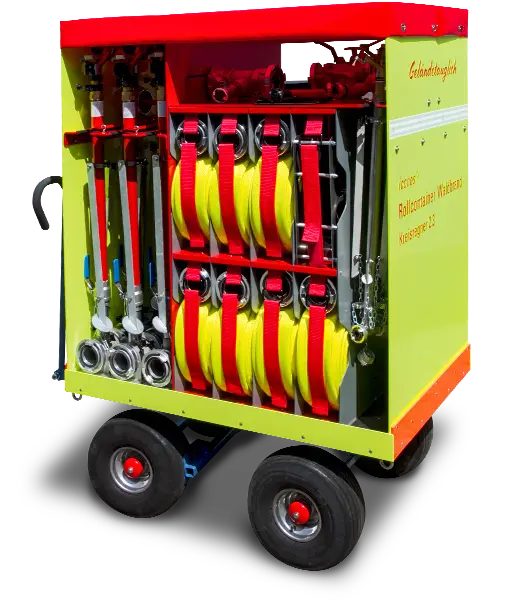

Trolley forest fire circle sprinkler 2.3

This trolley is especially suitable for the rapid construction of barricades. The circular sprinkler and hose material are loaded together on it.

Available with standard or off-road tires

✓ Trolley
✓ 12 circular sprinklers-B
✓ 4 circular sprinklers-D
✓ 14 B hoses à 20 m
✓ 4 D hoses, 20 m each
✓ 2 cassettes with 2 D-hoses of 20 m each
✓ 1 B-D branch with ball valve
✓ Cassette with replacement nozzles
✓ Coupling wrench

• Platform dimensions: 1200 x 800 mm
• Overall length with drawbar: 1540 mm
• Overall height: 1800 mm
• Loading height: 530 mm
• Load capacity: 1100 kg
• Turntable steering
• With handles for 2 persons and towing eye
• Dead man’s brake according to EN 1757-3 for industrial trucks
• 4 lashing eyes or crane eyes
• 2 reflector strips at the front and rear
• Red tarpaulin cover made from tarpaulin fabric

iconos®

Trolley forest fire prevention & building protection

The effective solution for preventive fire protection
This compact roll container with versatile loading enables the effective protection of buildings, houses and endangered objects from approaching forest fires. Nothing has to go to waste – our system offers comprehensive protection. Securing extinguishing water at an early stage is crucial. Either a swimming pool or open body of water is available nearby or the water is supplied or filled into three collapsible containers with a total volume of 3,300 liters via the domestic water supply. The powerful petrol pump (500 l/min) can use this volume of water to operate the nozzle hoses to wet the front of the house. In addition, the circular sprinklers can keep an area of 3,000 m² in front of the building wet, while the multi-circular sprinklers, which are attached to the chimney or poles with a magnetic device, wet the roof. This system is also a valuable support for the fire department to efficiently protect your property.

Available with standard or off-road tires

✓ 1 x Trolley 1200 x 800 x 1800 mm
✓ 3 x foldable water containers with a capacity of 1,100 liters each
✓ 1 x collecting piece
✓ 1 x suction hose, 5 m long
✓ 1 x suction strainer with non-return valve, Storz-C connection
✓ 1 x valve line
✓ 1 x Honda WH20 pump with a capacity of 500 l/min at 5 bar
✓ 1 x fuel tank 20 liters
✓ 1 x C – CC distributor with ball valve
✓ 1 x Euro container 40 x 80 x 40 cm with 4 x 20 m fire department pressure hoses C-52
✓ 2 x iconos® nozzle hose C-52, 20 m long with 2 mm step nozzles
✓ 2 x iconos® circular sprinklers B with reducers C

✓ 1 x iconos® multi-circular sprinkler set in case, consisting of:
✓ 4 x multi-circular sprinklers with magnetic base
✓ 4 x metal brackets and tension straps
✓ 4 x sprinkler nozzles with GK coupling
✓ 6 x D-hose with Storz-D coupling
✓ 1 x jet pipe Euro nozzle
✓ 1 x single distributor

• Platform dimensions: 1200 x 800 mm
• Overall length with drawbar: 1540 mm
• Overall height: 1800 mm
• Loading height: 530 mm
• Load capacity: 1100 kg
• Turntable steering
• With handles for 2 persons and towing eye
• Dead man’s brake according to EN 1757-3 for industrial trucks
• 4 lashing eyes or crane eyes
• 2 reflector strips at the front and rear
• Red tarpaulin cover made from tarpaulin fabric

to the explanatory image

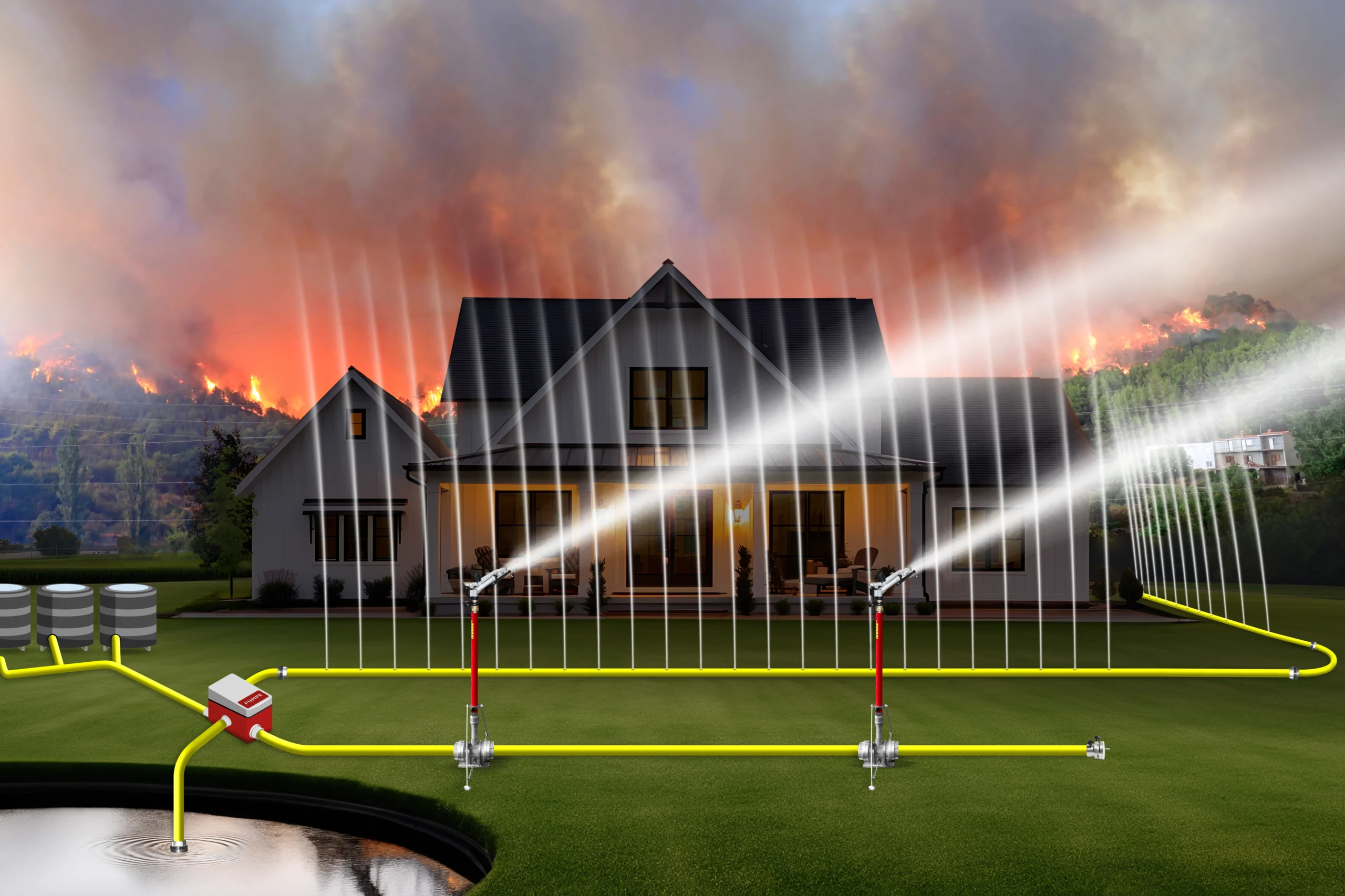

Explanatory image

The structure and function of the iconos® forest fire prevention & building protection trolley at a glance.
AI-generated image. Copyright: Adobe Stock / #892883850 / design master
