iconos® Fire fighting express

Hose laying in difficult terrain in 10 minutes

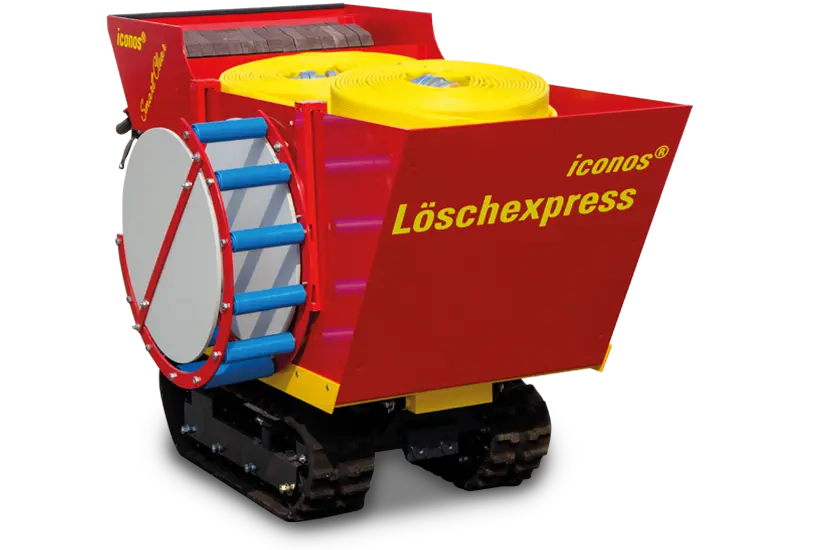

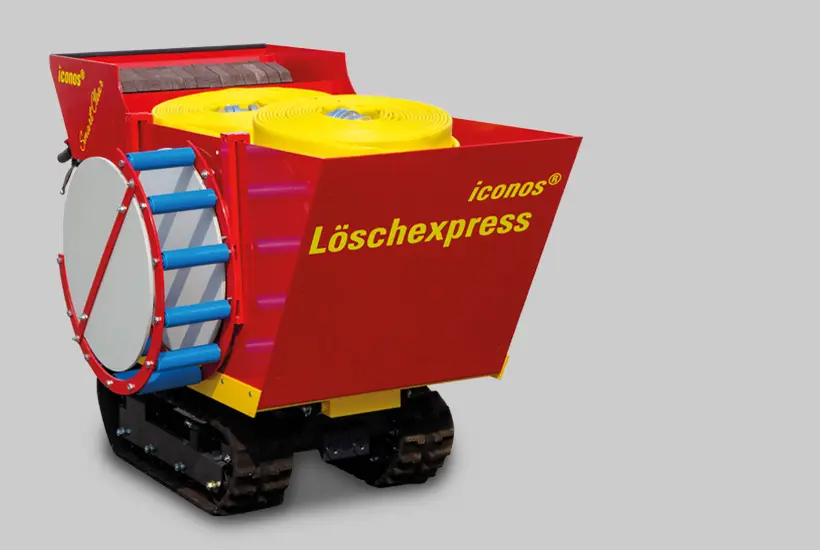

The all-terrain iconos® Fire fighting express enables 2-3 firefighters to quickly lay 320 meters of nozzle hose in just 10 minutes. With an unwinding and winding device for efficient off-road work and a hydraulically tiltable loading trough for up to 16 B hoses, it is ideal for rapid deployment. Powered by a petrol engine with chain drive, it can tackle difficult terrain at up to 6 km/h – compact, efficient and versatile!

iconos®

Fire fighting express

Set up a 320-meter-long barricade in 10 minutes

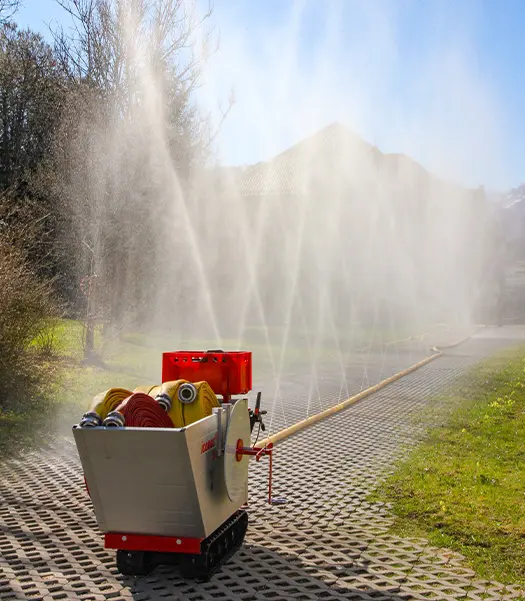

With the all-terrain iconos® Fire fighting express, 320 meters of nozzle hose can be laid in a bar position within 10 minutes by just 2-3 firefighters. A nozzle hose is inserted into the lateral unwinding device, coupled to the previous hose and fixed in place. At a speed of up to 6 km/h, the hose pulls itself out of the unwinding device. For dismantling, there is a hand-cranked rewinding device that simultaneously deflates and drains the hoses. The hose supply is located in the spacious loading trough, which can hold up to 16 B hoses. The tiltable loading trough is also suitable for transporting debris or other goods.

✓ iconos® Fire fighting express
✓ 16 pieces of B-nozzle hose with 2 mm step nozzles (forest fire nozzles)
✓ One roll-on and one roll-off device each
✓ 1 collecting piece B-BBB
✓ Coupling wrench and dummy couplings
✓ Stopcock with B fixed coupling
✓ 32 fixing blocks

• All-way vehicle with chain drive and differential steering
• Petrol engine 4.6 kW at 3,600 rpm 1 cylinder air-cooled
• Water consumption: 2,200 l/min, throwing height: 4-5 m
• Hydraulic tiltable loading trough
• Maximum speed: 6 km/h
• Unladen weight: 145 kg
• Payload: 600 kg
• Dimensions: 1,800 mm x 700 mm x 1,300 mm (L x W x H)
