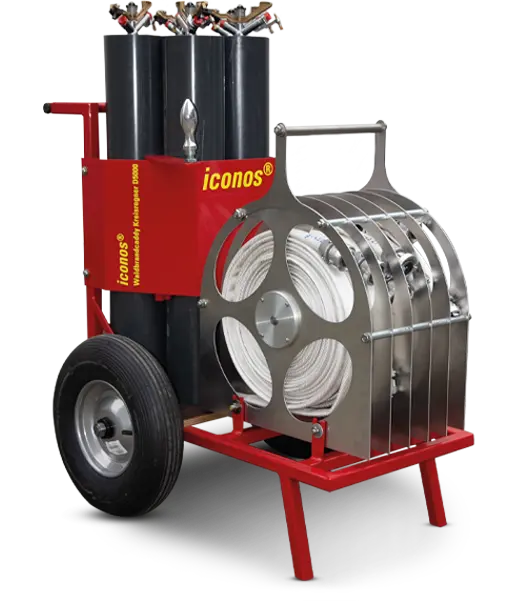

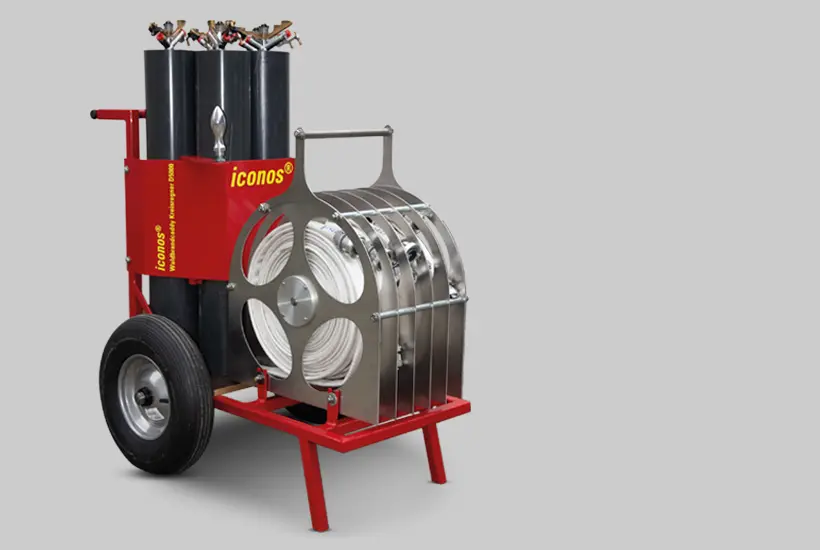

✓ iconos^® Fire fighting caddy D5000
✓ 5 x iconos^® D-circle sprinklers
✓ 5 x iconos^® D hoses
✓ iconos^® D hose carrier

5 x iconos^® D-circular sprinklers

The D-circular sprinklers are equipped with a Storz D connection, a T-piece and a dummy coupling with chain. They have throw nozzles on both sides, which achieve a throw range of 18 meters and irrigate an area of 250 m². A sliding piece with 4 feet and a chain provides the necessary stability.

5 x iconos^® D-hose

The D-hose magazine on the extinguishing caddy is an innovative solution that stores 5 D-hoses of 20 meters each. Using the magazine mechanism, an extinguishing force can quickly wind up the hoses. A piece of pipe with a crank is pushed through the magazine to the last compartment, where a driver nose winds up the hose single or double in just a few seconds. Lateral retaining plates guide the hose cleanly. The tube is then pulled into the next compartment to wind up the next hose. Removal is just as quick: the hose is unwound from the first compartment to the next circular sprinkler.

✓ Transporting material to the job site
✓ Irrigation of up to 1,250 m² area
✓ Ideal for narrow paths and rough terrain
✓ Effective vegetation and forest fire fighting
✓ Post-extinguishing and preventive keeping of areas wet
✓ Stable use of the D-circle sprinkler with 18 m throw range
✓ Quick winding and unwinding of the hoses thanks to the innovative D-hose magazine

• 1,250 m² extinguishing area capacity of the loaded material
• Water consumption per D sprinkler 66 l/min
• Weight 45 kg
• Sturdy welded construction
• Tires 4.80/4.00-8.00
• Color red, powder-coated
