iconos® Nozzle hose
Securing areas through barricade position
iconos®
Nozzle hose
High extinguishing performance and versatile use thanks to bar positions
The innovative extinguishing technology from iconos® offers a high extinguishing capacity without tying up emergency personnel. The nozzle hoses can be laid quickly, are easy to use and can be used in any terrain. They remain securely in position and hold their position once in place. With eight different nozzle attachments, which can also be easily replaced during operation, the system is flexibly adaptable. Made of chemical-resistant material and stainless steel, this patented, German-made product is particularly robust. Specially developed accessories for the iconos® nozzle hose further extend the range of applications.
✓ Nozzle hose
✓ selected nozzles
✓ one blind coupling with chain
✓ 3x hose twist stopper / hose holder
• 180° bend
• swivel bearing
• End piece, small hydro shield

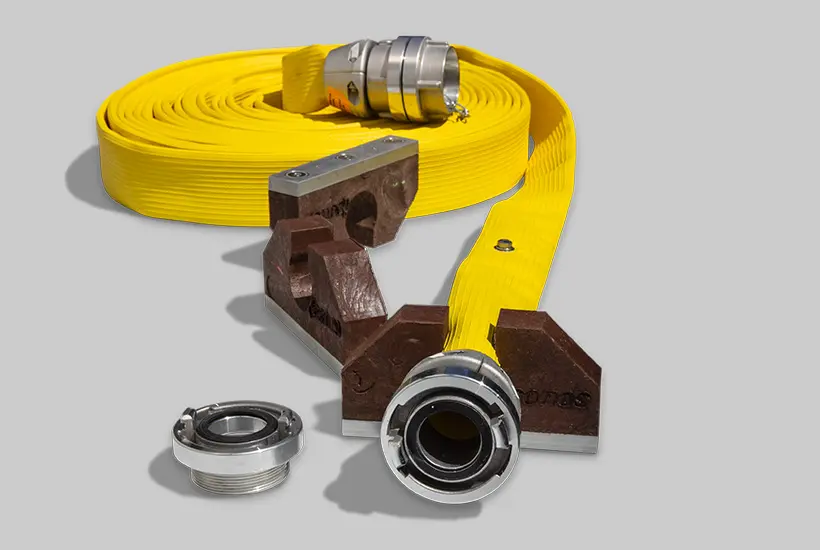

• For transportation: nozzle hose in DIN hose carrier basket
Accessories available separately
✓ Each nozzle has its own energy outlet and is therefore very wind-stable.
✓ Easy and quick to install.
✓ Stable position in the application.
✓ Tactically flexible to use in any terrain – whether straight, in a circle or in curves.
✓ Excellent bolt formation when forming sections.
✓ Large, person-independent extinguishing capacity that is safe and relieves the firefighters.

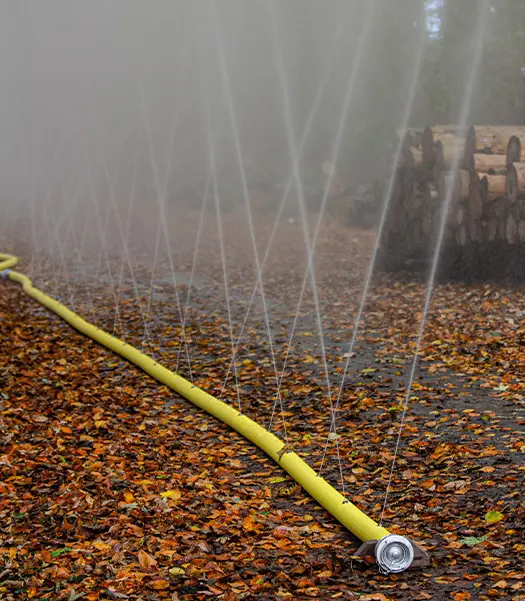

✓ Versatile use, depending on the task – as a water wall or water surface.
✓ Water walls up to 20 meters.
✓ Foam and wetting agents can be added.
✓ Patented product – manufactured in Germany.
✓ Fighting forest, land and bog fires, landfill and windrow fires.
✓ Precipitation of vapors and liquids.
✓ Preventing the spread of fire (bar position).
✓ Cooling and keeping objects wet.
✓ Absorption of radiant heat to protect other facilities.
✓ Absorption of hazardous suspended gases.
✓ Precipitation of vapors and liquids.
✓ Decontamination and disinfection of objects and vehicles.
✓ Preventive fire protection during the transfer of hazardous substances and repair work.
✓ Ship fire fighting and pirate defense.
B-nozzle hose: With a water flow rate of up to 1,300 l/min, depending on nozzle and pump capacity. Several hoses can be connected in series, as the flow rate is guaranteed with this cross-section.
C-nozzle hose: With a water flow rate of up to 880 l/min. A maximum of 2 hoses in a row, as the water flow rate is lower with C hoses.
D-nozzle hose: With a water flow rate of 20 to 60 l/min, ideal for decontamination purposes and for fighting forest fires.
A-nozzle hose: With a water flow rate of up to 2,250 l/min, suitable for a massive water wall
The specified water volumes are approximate guide values for a nozzle hose. These quantities may vary depending on the pump capacity and nozzles used.
• Hose sizes: B, C, D, A
• Length: 20 m
• Yellow marking as special device
• Working pressure from 4-16 bar
• 8 easily interchangeable nozzle inserts available for different applications
Different nozzle spacing:
– Standard: 25 pieces on 20 m hose, 800 mm spacing
– Narrow: 40 pieces on 20 m hose, 500 mm distance
– Very narrow: 50 pieces on 20 m hose, 400 mm distance
iconos®
Nozzles
Different nozzle cross-sections tailored to the deployment situation and tactics
The eight different nozzles for the nozzle hose expand the range of applications for all iconos® products that use this nozzle technology, such as the nozzle hose, fire trestle 2L and fire fighting ball. The number of nozzles, the size of the nozzle cross-sections and specially configured drill channels determine the extinguishing agent consumption and the application method. The nozzles are specially developed for various applications, such as fighting vegetation fires, sealing off sections, knocking down gases and vapors and binding dust.
✓ the iconos® nozzles you have selected
✓ Easy and quick to install.
✓ Flexible nozzle hose system adaptable with eight different nozzle attachments
✓ Simple replacement of the nozzles, even during operation
✓ Combating vegetation fires
✓ Sealing off sections for firefighting
✓ Suppression of gases and vapors
✓ Binding of dusts
✓ Extended application options for nozzle hose, fire trestle 2L and fire fighting ball
✓ Adjustment of extinguishing agent consumption through varying nozzle cross-sections
✓ Flexible application thanks to specially configured drill channels
✓ Effective extinguishing technology for different fire scenarios
iconos® nozzle – 2 mm stepped nozzle, M10 thread
iconos® nozzle – 3 mm stepped nozzle, M10 thread
iconos® nozzle – 4 mm stepped nozzle, M10 thread
iconos® nozzle – 6 mm through-nozzle, M10 thread, also available as 4 mm through-nozzle, M8 thread
iconos® nozzle – 2 hole, M10 thread
iconos® nozzle – 3 hole, M10 thread, also available with M8 thread
iconos® nozzle – 5 hole, M10 thread
iconos® nozzle – 2 mm stepped nozzle, M8 thread, forest fire nozzle with low water consumption
iconos® nozzle – 3 mm stepped nozzle, M8 thread
iconos®
Clamping slide ring
Connect hoses in 60 seconds - no more snagging of the hose coupling
The fire hose is connected in just one minute – without any wire or expensive special tools, quickly and easily! The iconos® clamping ring replaces the wire strap. Its two halves clamp the fire hose radially to the hose axis in a force-fit and form-fit manner. The metallic binding offers maximum safety even at high temperatures and prevents the hose cover from slipping off. Thanks to the conical shape of the clamping shell, the hose coupling glides effortlessly over obstacles such as door frames or steps. This saves the emergency team valuable seconds for the rapid rescue of people and effective firefighting.
✓ the iconos® clamping slide rings you have selected
✓ Clamping shells offer optimum safety for the attack team
✓ Hardly any snagging of the hose coupling on obstacles and hose cages
✓ Saves time during indoor operations
✓ No expensive special tools required for connecting the hose
✓ Reduction of material damage
✓ Patented product – manufactured in Germany
• D-25
• C-42
• C-52
• B-75
• A-110
• Hot-pressed aluminum
• for hose wall thicknesses from 1.3 mm – 3.4 mm
• Suitable for hose support cages and hose washing systems
• Assembly with 6 mm Allen key
Application video
Do you have a minute? Because it only takes that long to connect the hose coupling with the clamping sliding ring.
iconos®
Hose twist stopper
For stable hose alignment and nozzle position
Three hose twist stoppers are supplied as standard with every iconos® nozzle hose. These are placed at the beginning, middle and end of the nozzle hose. The first stopper prevents the feed hose from overturning the nozzle hose; as soon as the first hose holder is pressurized, the entire hose remains stable. Due to the manufacturing process, the nozzle hose has a slight twist, which ensures that it remains aligned in one direction over its entire length. The hose twist stopper also makes it possible to turn the nozzle hose sideways when the pressure is reduced so that the nozzles are aligned at a 45° position. As soon as pressure is applied again, the water sprays in the set direction, for example against the front of a hall.
✓ iconos® hose twist stopper, the size you have selected
Diameter in mm for the following hoses:
A-110 mm
B-75 mm
C-52 mm
D-25 mm
iconos®
End piece 90°
Water control for nozzle hoses at a 90° angle
The adjustable iconos® 90° end piece for the nozzle hose diverts the water at a right angle and is ideal for creating a barrier in narrow and difficult-to-access areas. It enables a wall of water to be created at a 90° angle to the nozzle hose by simply attaching it to the end of the nozzle hose. The adjustable design and base stop prevent twisting and ensure maximum flexibility and stability during use.
✓ iconos® end piece 90°, adjustable
✓ Drain water at a right angle
✓ Creating a wall of water at a 90° angle to the nozzle hose
✓ Creation of a bar position
✓ Stable use thanks to floor stop to prevent twisting
✓ Flexible use thanks to adjustable design
iconos®
Pivot bearing
Adjustable throw distance for the nozzle hose
With the iconos® swivel bearing, the water outlet angle of the nozzle hose can be flexibly adjusted and stabilized even under pressure during operation. This converts the throwing height into a precise throwing distance.
✓ iconos® swivel bearing
iconos®
180° round arch
Optimum arrangement of the nozzle hoses
With the iconos® 180° round bend, the nozzle hoses can be arranged at an acute angle.
✓ iconos® 180° round arch
Our products
Discover the entire iconos® product range for effective fire protection.
Rely on the powerful iconos® extinguishing systems for reliable and effective fire protection in all situations.
iconos® transport systems ensure fast and safe transportation of your extinguishing equipment, whatever the application.
iconos® accessory products offer useful and high-quality insert, extension and replacement material.
Stay in contact
You can use our contact form to obtain information or advice quickly and easily.
Extinguishing equipment from professionals for professionals
